The following images show order of nodes in correctly defined elements.

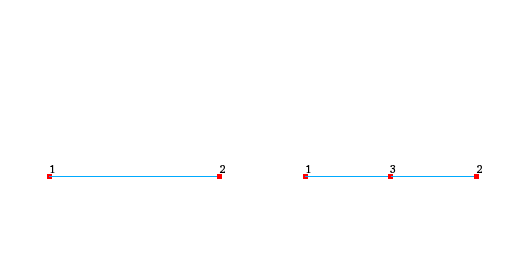

Edge (segment): linear and quadratic![]() |

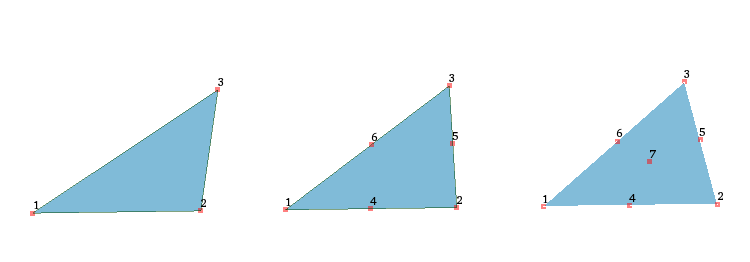

Triangle: linear, quadratic and bi-quadratic ![]() |

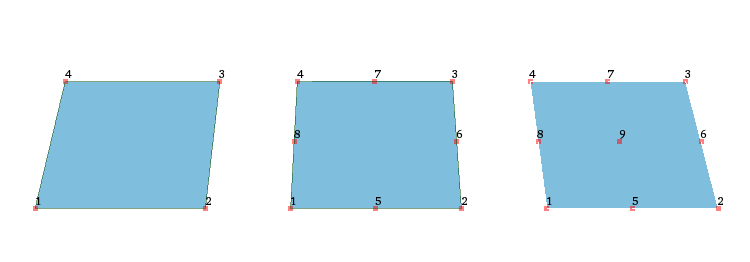

Quadrangle: linear, quadratic and bi-quadratic ![]() |

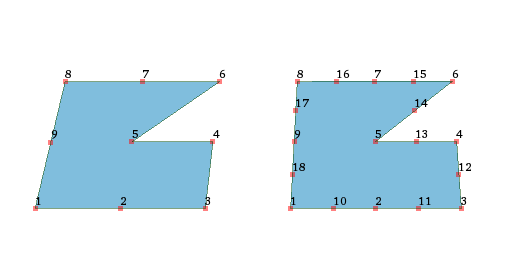

Polygon: linear and quadratic ![]() |
Tetrahedron: linear and quadratic ![]() |

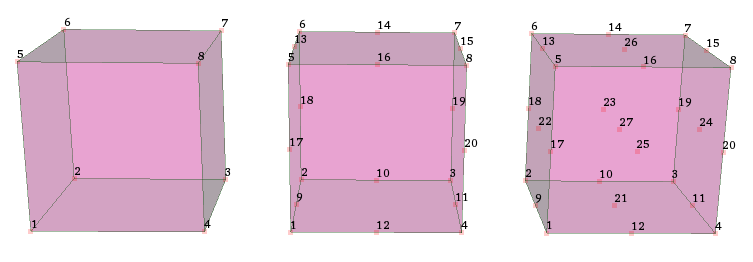

Hexahedron: linear, quadratic and tri-quadratic ![]() |

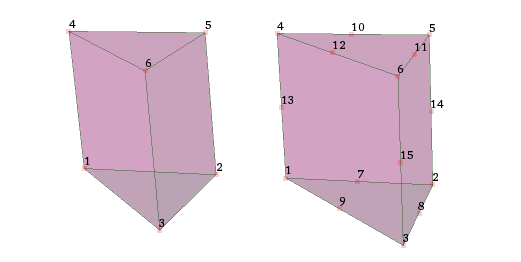

Pentahedron: linear and quadratic ![]() |

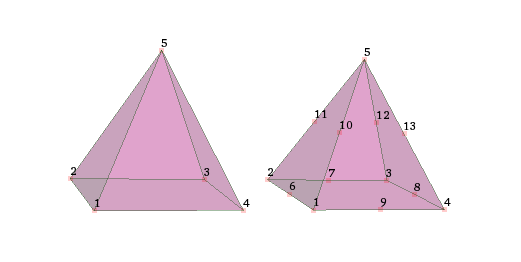

Pyramid: linear and quadratic ![]() |

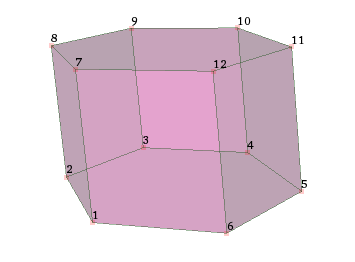

Hexagonal prism ![]() |
Polyhedron is defined by
Nodes: For example the polyhedron shown in the image below is defined by nodes ![]() Order of nodes of a facet must assure outward direction of its normal. |
